RSG 3-D vs. Monolith

---

Structural System Briefing: RSG 3-D vs. Monolith

The Bottom Line

• RSG 3-D is the optimal fit when a project requires a complete structural panelized envelope: walls, roofs, floors, curves, spans, multifamily, resorts, municipal, and industrial buildings.
• Monolith is the optimal fit when a project requires a premium ICF wall system featuring high thermal density, moisture resistance, acoustic privacy, finish-ready surfaces, and a simplified wall assembly.

Strategic Position: They are not identical competitors. They solve fundamentally different structural challenges. Do not frame this as “which one is better?” Frame it as: Two resilient systems. Two deployment lanes. One EverSafe specification platform.

---

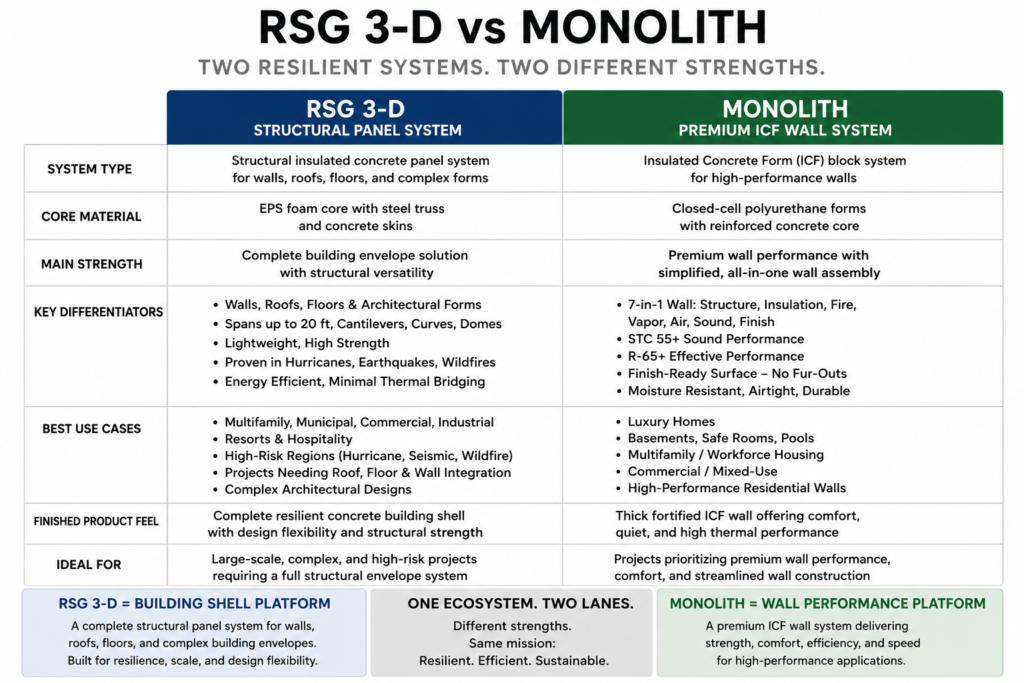

Core Product Matrix

Category	RSG 3-D	Monolith
System Type	Structural insulated concrete panel system	Polyurethane ICF block wall system
Material Logic	EPS core + steel truss matrix + concrete skins	Closed-cell polyurethane form + reinforced concrete core
Best Identity	Whole-building resilient panel envelope	High-performance ICF wall system
Finished Feel	Concrete shell / monolithic panelized structure	Thick fortified ICF wall / quiet premium envelope
Strongest Differentiator	Forms walls, roofs, floors, curves, domes, and spans	7-in-1 wall: structure, insulation, air/vapor, fire, sound, finish-ready
Best Use Cases	Multifamily, municipal, resorts, wildfire/seismic/hurricane regions	Luxury homes, basements, safe rooms, pools, high-performance residential

---

Finished Product Profiles

1. RSG 3-D: Whole-Building Resilient Panel Envelope

RSG’s structural advantage turns the entire building shell into a concrete-insulated panel construction—including walls, roofs, floors, and complex architectural profiles. The system natively supports off-plumb walls, complex roofs, spans up to 20 feet, cantilevers, curves, domes, and vaulted forms. It creates a monolithic envelope with minimal air exchange, minimal thermal bridging, and thermal massing through interior concrete surfaces.

Key Performance Advantages:

• High-capacity disaster-resilient structural shell
• Unmatched architectural and fluid geometric flexibility
• High-impact structural concrete surfaces
• Engineered specifically for high-risk regions and institutional scales

2. Monolith: Premium Fortified ICF Wall System

Monolith consolidates the wall assembly into a premium fortified ICF envelope utilizing fewer layers and fewer trades. It operates as a verified “7-in-1” system combining structure, insulation, fire protection, vapor barrier, air barrier, acoustic management, and finish-ready surfaces. It provides STC 55+ acoustic performance, closed-cell polyurethane moisture resistance, and direct drywall attachment without fur-out strips.

Key Performance Advantages:

• Ultra-quiet interiors (STC 55+ acoustic rating)
• Closed-cell polyurethane moisture barrier (ideal for subgrade/high-moisture)
• R-65+ effective insulation performance when combined with thermal mass
• Airtight continuous wall boundary performance with accelerated finish velocity

---

Deployment & Target Use Cases

Deploy RSG 3-D When the Project Needs a Complete Structural Shell:

• Multifamily developments and coastal resorts
• Municipal buildings, schools, and civic infrastructure
• Wildfire rebuild zones and high-seismic/hurricane regions
• Integrated floor/roof/wall architectures and ADUs
• Field Proof: Structural panel designs have successfully survived repeated high-impact events, including multi-story coastal developments weathering consecutive Category 5 hurricanes with zero structural degradation.

Deploy Monolith When the Project Needs a Premium ICF Wall Package:

• Custom luxury residential and high-performance single-family homes
• Premium basements and subgrade living environments
• Safe rooms, storm shelters, and structural in-ground pool enclosures
• Workforce/multifamily wall assemblies where moisture, quiet, and finish speed matter
• Field Proof: Engineered specifically for high-end envelopes where acoustic privacy, premium surface finish velocity, moisture mitigation, and thermal mass density are the guiding design requirements.

---

Strategic Integration Blueprint

For the EverSafe platform, this operational distribution creates two distinct lanes managed under a unified engineering and specification ecosystem:

Lane 1: The Luxury & Custom Lane

• Powered by: Monolith
• The Story: Luxury fortress, ultra-quiet interiors, exceptional thermal comfort, premium subgrade spaces, pools, basements, and high-end residential envelopes.

Lane 2: The Institutional & Scale Lane

• Powered by: RSG 3-D
• The Story: Panelized resilient shells, integrated floor/roof/wall configurations, multifamily housing, municipal infrastructure, disaster rebuilds, and high-risk regional infrastructure.

Conclusion: Monolith gives the EverSafe platform premium ICF wall intelligence. RSG 3-D gives it whole-building resilient panel intelligence.
